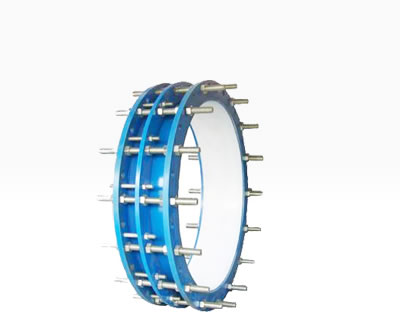

Double flange power transmission joint

Introduction to Double Flange Power Transmission Joint

The double flange power transmission joint is composed of a loose flange expansion joint, a short pipe flange, a power transmission screw, and other components, which can reduce the pressure thrust (blind plate force) of the connected parts and compensate for pipeline installation errors. The double flange power transmission joint cannot absorb axial displacement.

Double flange power joints are mainly used for loose connection of accessories such as pumps and valves.

The double flange loose sleeve force transmitting joint is composed of loose sleeve expansion joints, short pipe flanges, force transmitting screws, and other components. It can transmit the pressure and thrust (blind plate force) of the connected parts and compensate for pipeline errors, and cannot absorb axial displacement. It is important for loose connection of accessories such as pumps, valves, and pipelines.

Advantages of double flange power transmission joint

C2F/VSSJAF double flange power transmission joint is suitable for transporting seawater, fresh water, cold and hot water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, product oil, air, gas, steam and particulate powder with a temperature not higher than 250 degrees Celsius.

C2F/VSSJAF type double flange force transmission joint is suitable for pipelines with both sides connected to flanges. During installation, adjust the installation length of both ends of the product and the flange, and tighten the pressure bolts diagonally and uniformly to make them a whole with a certain amount of displacement. During installation and maintenance, adjust according to the on-site dimensions, which can transmit axial thrust to the entire pipeline during operation.

Technical parameters of double flange power transmission joint

Nominal Diameter DN External diameter of pipe Dw Overall dimensions Flange connecting dimension
0.6Mpa 1.0Mpa
L △L D D1 n-Th b D D1 n-Th b
65 76 200 40 160 130 4-M12 16 185 145 4-M16 20
80 89 190 150 4-M16 18 200 160 8-M16 22
100 114 210 170 220 180 24
125 140 240 200 8-M16 20 250 210 26
150 168 265 225 285 240 8-M20
200 219 320 280 22 340 295 28
250 273 375 335 12-M16 24 395 350 12-M20
300 325 220 50 440 395 12-M20 24 445 400
350 377 490 445 26 505 460 16-M20 30
400 426 540 495 12-M20 28 565 515 16-M24 32
450 480 595 550 28 615 565 20-M24 32
500 530 645 600 20-M20 30 670 620 20-M24 34
600 630 240 755 705 20-M24 30 780 725 24-M27 36
700 720 860 810 24-M24 32 895 840 24-M30 40
800 820 350 60 975 920 24-M27 34 1015 950 28-M30 44
900 920 1075 1020 24-M27 36 1115 1050 28-M33 46
1000 1020 1175 1120 28-M27 36 1230 1160 32-M36 50
1200 1220 370 1405 1340 32-M30 40 1455 1380 36-M39 56
1400 1420 1630 1560 36-M33 44 1675 1590 40-M45 62
1600 1620 380 1830 1760 40-M33 48 1915 1820 44-M45 68
1800 1820 2045 1970 44-M36 50 2115 2020 48-M45 70
2000 2020 400 2265 2180 48-M39 54 2325 2230 52-M52 74
2200 2220 2475 2390 52-M39 60 2550 2440 56-M52 80
2400 2420 2685 2600 56-M39 62 2760 2650 60-M52 82
2600 2620 450 80 2905 2810 60-M45 64 2960 2850 64-M52 88
2800 2820 3115 3020 64-M45 68 3180 3070 68-M56 94
3000 3020 3315 3220 68-M45 70 3405 3290 68-M56 100
3200 3220 3525 3433 72-M45 76
