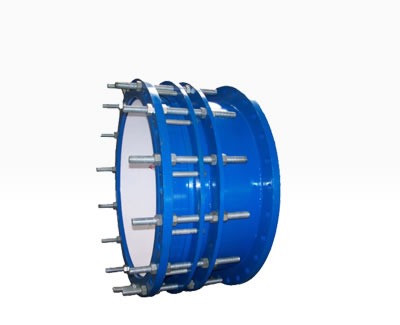

Introduction to vssjafc detachable double flange power transmission joint
VSSJAFC detachable double flange power transmission joint is composed of loose sleeve expansion joint, short pipe flange, power transmission screw, and other components. It can transmit the pressure and thrust (blind plate force) of the connected parts and compensate for pipeline errors, and cannot absorb axial displacement. It is important for loose connection of accessories such as pumps, valves, and pipelines.
Usage of vssjafc detachable double flange power transmission joint
VSSJAFC detachable double flange power transmission joint is suitable for transporting seawater, fresh water, cold and hot water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, product oil, air, gas, steam and particulate powder with a temperature not higher than 250 degrees Celsius.
VSSJAFC detachable double flange power transmission joint is suitable for pipelines with both sides connected to flanges. During installation, adjust the installation length of both ends of the product and the flange, and tighten the gland bolts diagonally and uniformly to form a whole with a certain amount of displacement, facilitating adjustment according to on-site dimensions during installation and maintenance. During operation, the axial thrust can be transmitted to the first pipe.
Technical parameters of vssjafc detachable double flange power transmission joint
|
Nominal Diameter DN |
External diameter of pipe |
Length |
Flange connecting dimension | |||||||||
| 0.6Mpa | 1.0Mpa | |||||||||||
| Dw | do | L | 1 | D | D1 | n-Th | b | D | D1 | n-Th | b | |
| 65 | 76 | 76 | 400 | 40 | 160 | 130 | 4-M12 | 16 | 185 | 145 | 4-M16 | 20 |
| 80 | 89 | 89 | 190 | 150 | 4-M16 | 18 | 200 | 160 | 8-M16 | 22 | ||
| 100 | 114 | 114 | 210 | 170 | 220 | 180 | 24 | |||||
| 125 | 140 | 140 | 240 | 200 | 8-M16 | 20 | 250 | 210 | 26 | |||
| 150 | 168 | 168 | 265 | 225 | 285 | 240 | 8-M20 | |||||
| 200 | 219 | 219 | 320 | 280 | 22 | 340 | 295 | 28 | ||||
| 250 | 273 | 273 | 375 | 335 | 12-M16 | 24 | 395 | 350 | 12-M20 | |||
| 300 | 325 | 325 | 420 | 50 | 440 | 395 | 12-M20 | 24 | 445 | 400 | 12-M20 | 28 |
| 350 | 377 | 377 | 490 | 445 | 26 | 505 | 460 | 16-M20 | 30 | |||
| 40 | 426 | 426 | 540 | 495 | 12-M20 | 28 | 565 | 515 | 16-M24 | 32 | ||
| 450 | 480 | 480 | 595 | 550 | 28 | 615 | 565 | 20-M24 | 32 | |||
| 530 | 530 | 530 | 645 | 600 | 20-M20 | 30 | 670 | 620 | 34 | |||
| 600 | 630 | 630 | 440 | 755 | 705 | 20-M24 | 30 | 780 | 725 | 20-M27 | 36 | |
| 700 | 720 | 720 | 860 | 810 | 24-M24 | 32 | 895 | 840 | 24-M27 | 40 | ||
| 800 | 820 | 826 | 600 | 60 | 975 | 920 | 24-M27 | 34 | 1015 | 950 | 24-M30 | 44 |
| 900 | 920 | 926 | 1075 | 1020 | 24-M27 | 36 | 1115 | 1050 | 28-M30 | 46 | ||
| 1000 | 1020 | 1026 | 1175 | 1120 | 28-M27 | 36 | 1230 | 1160 | 28-M33 | 50 | ||
| 1200 | 1220 | 1226 | 620 | 1405 | 1340 | 32-M30 | 40 | 1455 | 1380 | 32-M36 | 56 | |
| 1400 | 1420 | 1428 | 1630 | 1560 | 36-M33 | 44 | 1675 | 1590 | 36-M39 | 62 | ||
| 1600 | 1620 | 1628 | 1830 | 1760 | 40-M33 | 48 | 1915 | 1820 | 40-M45 | 68 | ||
| 1800 | 1820 | 1828 | 2045 | 1970 | 44-M36 | 50 | 2115 | 2020 | 44-M45 | 70 | ||
| 2000 | 2020 | 2030 | 650 | 2265 | 2180 | 48-M39 | 54 | 2325 | 2230 | 48-M45 | 74 | |
| 2200 | 2220 | 2230 | 2475 | 2390 | 52-M39 | 60 | 2550 | 2440 | 52-M52 | 80 | ||
| 2400 | 2420 | 2430 | 2685 | 2600 | 56-M39 | 62 | 2760 | 2650 | 56-M52 | 82 | ||
| 2600 | 2620 | 2630 | 750 | 80 | 2905 | 2810 | 60-M45 | 64 | 2960 | 2850 | 60-M52 | 88 |
| 2800 | 2820 | 2830 | 3115 | 3020 | 64-M45 | 68 | 3180 | 3070 | 64-M52 | 94 | ||
| 3000 | 3020 | 3030 | 3315 | 3220 | 68-M45 | 70 | 3405 | 3290 | 68-M56 | 100 | ||
| 3200 | 3220 | 3230 | 3525 | 3430 | 72-M45 | 76 | ||||||
