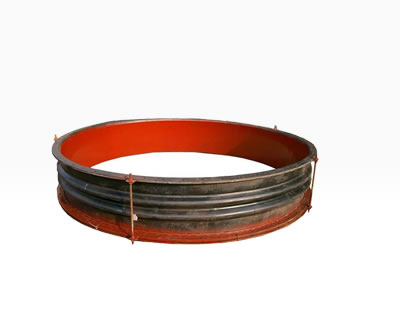

The air duct rubber compensator is not only convenient to use, but also cost-effective, making it a great product to ensure the normal operation of the pipeline system. Welcome to consult and order from the innovative water supply and drainage company. Firstly, let me introduce the performance characteristics of our FDZ type duct rubber compensator product:

1. The air duct rubber compensator has good repeatability in displacement (change) reduction, and can compensate for large multi-dimensional directions within a small size range. It can effectively eliminate multi-directional errors generated during various pipeline installation and connections.

2. The air duct rubber compensator has superior sound absorption and vibration isolation functions, which can effectively reduce and eliminate the transmission of noise and vibration in systems such as boilers and fans.

3. The weak transmission loss of the air duct rubber compensator reduces the design program and eliminates the need for additional auxiliary facilities.

4. The air duct rubber compensator and insulation materials have high heat and corrosion resistance, do not rust, and reduce maintenance costs.

5. The air duct rubber compensator has excellent air tightness and flexibility, ensuring that the conveying medium is free from leakage and can be restored to its original state after repeated displacement.

6. Especially for FVB and FUB models, they are high-performance products that are wider due to their high starting wave height, and have greater compression, elongation, angular, lateral, and deflection displacement, making them very suitable for places with more demanding working conditions.

Material list of FDZ type air duct rubber compensator

order number	position	material	quantity
1	flange	Angle steel	2 pieces
2	Inner and outer rubber	Natural rubber, synthetic rubber	1 piece
3	Enhancement layer	Silicone fiber fabric	2 layers

FDZ - (2) Product Connection Size Table (Partial Specifications)

B1	B2	B3	B4	B5	B6	connecting screw hole		spacing
						ф	（n2）	（n3）×b1	（n4）×b2
420	476	506	480	534	564	12	18	3×12	4×12
560	625	559	640	700	746	15	20	5×125	5×140
700	765	809	800	860	906	15	20	5×153	5×172
840	900	949	960	1020	1066	15	24	6×150	6×170
1120	1188	1232	1280	1340	1386	15	38	9×132	10×134
1400	1476	1538	1600	1672	1735	15	41	9×164	11×152

FDZ - (1) Product Connection Size Table (Partial Specifications)



Note: Users should pay attention to the following points when ordering:

1. When ordering, it is necessary to specify the product length (L). If there are special requirements for products with a diameter of 200mm or more, relevant dimensions and other information must be provided.

2. Suitable pressure for the product: 4000Pa

3. Applicable temperature range: -40 ℃ -150 ℃
