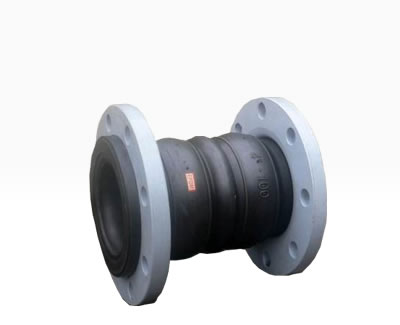

KST-F double ball limit rubber joint introduction
KST-F double ball limit rubber joint This product mainly utilizes the unique properties of rubber, such as high elasticity, high airtightness, medium resistance, and radiation resistance. It uses polyester cord fabric with high strength and strong thermal and cold stability to be diagonally compounded with it. It is molded and cross-linked under high pressure and high temperature, with high internal density, ability to withstand high pressure, and excellent elastic deformation effect. KST-F double ball limit rubber joint product is designed with a high end surface arc and long curve, and has a large number of displacement functions. It is especially used in places with complex geological conditions, large settlement amplitude, and frequent changes in cold and heat during pipeline operation, which can easily cause pipeline damage. The elastic sliding displacement of rubber and the heat transfer and dissipation function of deformation mechanical force effectively eliminate the displacement and physical damage of pumps, valves, and pipelines. Because rubber is a poor conductive material, the KST-F double ball limit rubber joint is also an ideal environmental protection product for reducing vibration and noise transmission. The product is designed with a smooth inner wall, and after practical testing, it has no impact on the flow rate and flow rate of the medium, and does not rust, basically eliminating maintenance during the effective operation period.
KST-F double ball limit rubber joint is made of high-end synthetic rubber, with excellent characteristics such as good chemical molecular stability, oxidation resistance, ozone resistance, aging resistance, dust resistance, and long product life. The inner wall of the KST-F double ball limit rubber joint is a smooth planar cylindrical shape, lined with polyester cord fabric, and the outer protruding part is a steel wire rope support ring. The inner layer of rubber is resistant to different media, and the outer layer is ordinary rubber. The main function of the KST-F double ball limit rubber joint is to prevent negative pressure flattening and withstand short time internal pressure, and to avoid the lower end of the suction pipe swinging due to the power and vibration of the pump, The water flow is evenly increased and the power consumption of the water pump is reduced. In addition, because the inner wall of the rubber joint is vertical and has no grooves, it prevents eddy currents when the water pump absorbs water, thereby improving the efficiency of the water pump.
Installation instructions for KST-F double ball limit rubber joint:
1. When installing rubber joints, it is strictly prohibited to install them beyond the limit of displacement.
2. KST-F double ball limit rubber joint mounting bolts should be symmetrical, gradually pressurized and tightened to prevent local leakage.
3. For working pressures above 1.6 MPa, install bolts with elastic compression pads to prevent bolts from loosening during operation.
4. When KST-F double ball limit rubber joint is vertically installed, both ends of the joint pipe should be supported by vertical forces. An anti pulling device can be adopted to prevent pulling out under working pressure.
5. KST-F double ball limit rubber joint The rubber joint should be installed away from heat sources and ozone areas. It is strictly prohibited to expose to strong radiation and use media that do not meet the requirements of this product.
6. KST-F double ball limit rubber joint During transportation and loading and unloading, it is strictly prohibited to cut the surface and sealing surface with sharp tools.
Working pressure: 0.6Mpa 1.0MPa 1.6MPa 2.5Mpa.
Scope of application and use of KST-F double ball limit rubber joint:
KST-F double ball limit rubber joint has good comprehensive performance, and is mainly used for the lifting and transportation of raw water and sewage, water supply and cooling circulating water in thermal power plants, pipeline transportation of chemical substances in the metallurgical industry, condensate water, chemical industry, cooling and dilution in the petrochemical industry, and flexible connection between long and short distance pipelines in other industries. Due to the high wear resistance of rubber, KST-F double ball limit rubber joints are suitable for low-temperature transportation of granular, powdered, and vapor materials in all industries.
Zhongyuan Water Supply and Drainage Equipment is a KST-F double ball limit rubber joint product manufacturing enterprise. Since its establishment, it has been deeply engaged in the water supply and drainage pipeline engineering field and has tried to provide durable KST-F double ball limit rubber joint products for water supply and drainage pipeline engineering customers!
