Shear type vibration isolator

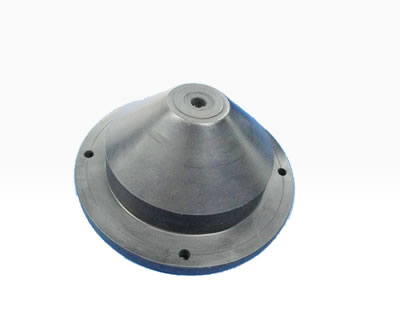

Introduction to JGD type rubber shear vibration isolator

JGD type rubber shear vibration isolator is composed of inner and outer steel sleeves and synthetic rubber in the middle. After vulcanization, the rubber part is shaped into a central cone, which is subjected to shear force, and has a large deformation range and low natural frequency. The operating temperature range is from - 5 ℃ to+50 ℃. When the temperature changes, the stiffness also changes; Damping ratio C/Cc>0.07. JGD type rubber shear vibration isolator has good vibration isolation effects for mechanical equipment such as water pumps, compressors, ventilators, generator sets, and refrigerators, as well as for instruments and meters.

Technical parameters of JGD type rubber shear vibration isolator

Model Load range
（KG）		 Rated static deformation
（mm）		 Natural frequency
（HZ）		 Overall dimensions（mm）
L D D M N Φ H
JGD-50 20-50 8±2 8±2 72 150 120 12 7 13 10
JGD-85 50-85 8±2 8±2 72 150 120 12 7 13 10
JGD-160 85-160 8±2 8±2 83 200 170 14 10 15 14
JGD-330 160-330 8±2 8±2 83 200 170 14 10 15 14
JGD-540 330-54 8±2 8±2 83 200 170 14 10 17 14
JGD-650 540-650 8±2 8±2 110 297 260 16 12 17 20
JGD-1300 650-1300

8±2

 8±2 110 297 260 16 12 17 20
JGD-1500 1000-1500 10±2 7±2 110 297 260 16 12 17 20
