Introduction to KXT Rubber Joint

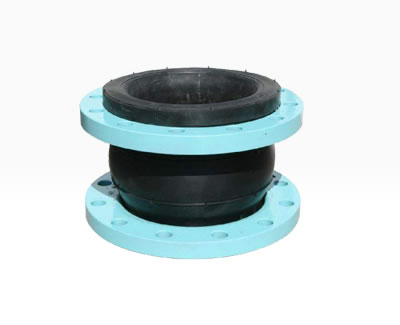

KXT type rubber joints are composed of rubber parts reinforced with fabric and metal materials and movable flanges. KXT type rubber joints are used for vibration absorption and isolation of metal pipeline systems, reducing noise and displacement compensation, balancing temperature differences, eliminating electrical corrosion between different metals, and facilitating the installation and replacement of pipeline fittings. The difference between KXT type rubber joint and JGD type rubber joint is due to the adoption of different and more scientific processing techniques, resulting in better performance and healthier pipeline system.
Technical Parameters of KXT Rubber Joint
|
Project Model |
KXT-1 |
KXT-2 |
KXT-3 |
|
Working pressureMPa(Kg·f/cm2) |
1.0(10) |
1.6(16) |
2.5(25) |
|
Burst pressure MPa (Kg. f/cm2) |
2.0(20) |
3.0(30) |
4.5(45) |
|
Vacuum degree KPa (mmHg) |
53.3(400) |
86.7(650) |
100(750) |
|
Applicable temperature ℃ |
-15~ +80, special up to - 30~160 |
||
|
Applicable media |
Air, compressed air, water, seawater, hot water, oil, acid, alkali, etc |
||
|
Nominal diameter |
Length L |
Flange thickness b |
Number of bolts |
Bolt diameter mm |
Bolt hole center (Circle diameter mm) |
Axial displacementmm |
Lateral displacement mm |
Deflection angle a1+a2 |
||
|
mm |
inch |
prolongation |
compress |
|||||||
|
32 |
1.25 |
95 |
16 |
4 |
18 |
100 |
6 |
9 |
9 |
15 |
|
40 |
1.5 |
95 |
18 |
4 |
18 |
110 |
6 |
10 |
9 |
15 |
|
50 |
2 |
105 |
18 |
4 |
18 |
125 |
7 |
10 |
10 |
15 |
|
65 |
2.5 |
115 |
20 |
4 |
18 |
145 |
7 |
13 |
11 |
15 |
|
80 |
3 |
135 |
20 |
4 |
18 |
160 |
8 |
15 |
12 |
15 |
|
100 |
4 |
150 |
22 |
8 |
18 |
180 |
10 |
19 |
13 |
15 |
|
125 |
5 |
165 |
24 |
8 |
18 |
210 |
12 |
19 |
13 |
15 |
|
150 |
6 |
180 |
24 |
8 |
23 |
240 |
12 |
20 |
14 |
15 |
|
200 |
8 |
210 |
24 |
8 |
23 |
295 |
16 |
25 |
22 |
15 |
|
250 |
10 |
230 |
26 |
12 |
23 |
350 |
16 |
25 |
22 |
15 |
|
300 |
12 |
245 |
28 |
12 |
23 |
400 |
16 |
25 |
22 |
15 |
|
350 |
14 |
255 |
28 |
16 |
23 |
460 |
16 |
25 |
22 |
15 |
|
400 |
16 |
255 |
30 |
16 |
25 |
515 |
16 |
25 |
22 |
15 |
|
450 |
18 |
255 |
30 |
20 |
25 |
565 |
16 |
25 |
22 |
15 |
|
500 |
20 |
255 |
32 |
20 |
25 |
620 |
6 |
25 |
22 |
15 |
|
600 |
24 |
260 |
36 |
20 |
30 |
725 |
6 |
25 |
22 |
15 |
|
700 |
28 |
260 |
36 |
24 |
30 |
840 |
16 |
25 |
22 |
15 |
|
800 |
32 |
260 |
38 |
24 |
34 |
950 |
16 |
25 |
22 |
15 |
|
900 |
36 |
260 |
42 |
28 |
34 |
1050 |
6 |
25 |
22 |
15 |
|
1000 |
40 |
260 |
44 |
28 |
34 |
1160 |
18 |
26 |
24 |
15 |
|
1200 |
48 |
260 |
48 |
32 |
41 |
1380 |
18 |
26 |
24 |
15 |
|
1400 |
56 |
350 |
44 |
36 |
34 |
1560 |
20 |
28 |
26 |
15 |
|
1600 |
64 |
350 |
46 |
40 |
34 |
1760 |
25 |
35 |
30 |
10 |
|
1800 |
72 |
350 |
52 |
44 |
41 |
1970 |
25 |
35 |
30 |
10 |
|
2000 |
80 |
420 |
54 |
48 |
48 |
2180 |
25 |
35 |
30 |
10 |
|
2200 |
88 |
580 |
40 |
52 |
48 |
2390 |
25 |
35 |
30 |
10 |
|
2400 |
96 |
610 |
41 |
56 |
48 |
2600 |
25 |
35 |
30 |
10 |
|
2600 |
104 |
650 |
42 |
60 |
54 |
2810 |
25 |
35 |
30 |
10 |
|
2800 |
112 |
680 |
45 |
64 |
54 |
3020 |
25 |
35 |
30 |
10 |
|
3000 |
120 |
680 |
50 |
68 |
54 |
3220 |
25 |
35 |
30 |
10 |
