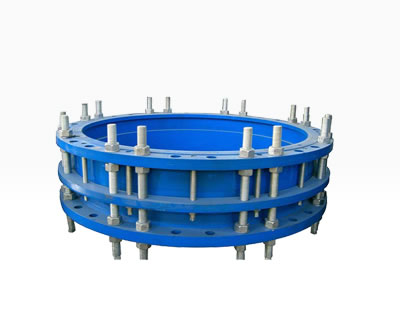

Introduction to Single Flange Loose Sleeve Power Transmission Joint

VSSJAFG type single flange loose sleeve power transmission joint is a new product for connecting pumps, valves, pipelines, and other equipment to pipelines. It is connected by full bolts to make it a whole, with a certain amount of displacement, facilitating installation. The single flange loose sleeve power transmission joint produced by the innovative pipeline can withstand the axial pressure of the pipeline. In this way, during installation and maintenance, adjustments can be made according to the on-site installation dimensions, which not only improves work efficiency, but also plays a certain protection role for pipeline equipment such as pumps and valves.

Use of single flange loose sleeve power transmission joint

VSSJAFG single flange loose sleeve power transmission joint is suitable for transporting seawater, fresh water, cold and hot water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, product oil, air, gas, steam and particulate powder with a temperature not higher than 250 degrees Celsius.

Advantages of single flange loose sleeve power transmission joint

1.VSSJAFG type single flange loose sleeve power transmission joint is simple and convenient to install, convenient for valve installation, and can withstand the axial tension of the pipeline.

2.VSSJAFG type single flange loose sleeve power transmission joint is composed of metal casting or welding, and the loose sleeve part adopts trapezoidal rubber sealing ring under the action of gland and bolts.

3.The VSSJAFG type single flange loose sleeve force transmission joint utilizes the elastic deformation principle of rubber compression. Force the sealing ring to deform between the outer walls of the expansion tube of the joint body for static sealing.

4.The metal and sealing ring shall be selected strictly according to the use performance and user requirements. The VSSJAFG single flange loose sleeve power transmission joint material is coated with high-strength anti-corrosion paint on the outside, and the connecting bolts of each part are made of high-strength carbon steel or stainless steel. Because there is a certain gap between the body and the expansion tube, it has a certain axial and radial displacement.

5.It can effectively compensate and alleviate the thrust of pipelines and blind plates in pipelines, and facilitate the installation, maintenance, and replacement of water pumps and valves. It is actually an ideal supporting product in the pipeline installation and operation industry.

VSSJAFG type single flange loose sleeve power transmission joint is suitable for connecting one side to the flange and welding one side to the pipeline. During installation, adjust the installation length between both ends of the product and the pipe or flange. After installation and welding, tighten the gland bolts diagonally and uniformly to make them a whole with a certain amount of displacement, which is convenient for installation and maintenance, and can be adjusted according to the on-site dimensions. During operation, the axial thrust can be transmitted to the entire pipeline.

Technical parameters of single flange loose sleeve power transmission joint

No.	Name	Quantity	Material
1	Body	1	QT400-15，Q235A,ZG230-450，20
2	Gasket	1	NBR
3	Follower	1	QT400-15,Q235A,ZG230-450，20
4	Limited short pipe	1	Q234A,20，16Mn
5	bolt	n	q235A,35，1Cr8Ni9Ti
6	Nut	5n	Q235A,20，1Cr8Ni9Ti



Nominal Diameter DN	External diameter of pipe		Length		Flange connecting dimension
					0.6Mpa				1.0Mpa
	Dw	do	L	1	D	D1	n-Th	b	D	D1	n-Th	b
65	76	76	400	40	160	130	4-M12	16	185	145	4-M16	20
80	89	89			190	150	4-M16	18	200	160	8-M16	22
100	114	114			210	170			220	180		24
125	140	140			240	200	8-M16	20	250	210		26
150	168	168			265	225			285	240	8-M20
200	219	219			320	280		22	340	295		28
250	273	273			375	335	12-M16	24	395	350	12-M20
300	325	325	420	50	440	395	12-M20	24	445	400	12-M20	28
350	377	377			490	445		26	505	460	16-M20	30
40	426	426			540	495	12-M20	28	565	515	16-M24	32
450	480	480			595	550		28	615	565	20-M24	32
530	530	530			645	600	20-M20	30	670	620		34
600	630	630	440		755	705	20-M24	30	780	725	20-M27	36
700	720	720			860	810	24-M24	32	895	840	24-M27	40
800	820	826	600	60	975	920	24-M27	34	1015	950	24-M30	44
900	920	926			1075	1020	24-M27	36	1115	1050	28-M30	46
1000	1020	1026			1175	1120	28-M27	36	1230	1160	28-M33	50
1200	1220	1226	620		1405	1340	32-M30	40	1455	1380	32-M36	56
1400	1420	1428			1630	1560	36-M33	44	1675	1590	36-M39	62
1600	1620	1628			1830	1760	40-M33	48	1915	1820	40-M45	68
1800	1820	1828			2045	1970	44-M36	50	2115	2020	44-M45	70
2000	2020	2030	650		2265	2180	48-M39	54	2325	2230	48-M45	74
2200	2220	2230			2475	2390	52-M39	60	2550	2440	52-M52	80
2400	2420	2430			2685	2600	56-M39	62	2760	2650	56-M52	82
2600	2620	2630	750	80	2905	2810	60-M45	64	2960	2850	60-M52	88
2800	2820	2830			3115	3020	64-M45	68	3180	3070	64-M52	94
3000	3020	3030			3315	3220	68-M45	70	3405	3290	68-M56	100
3200	3220	3230			3525	3430	72-M45	76
