Double flange limit retractor

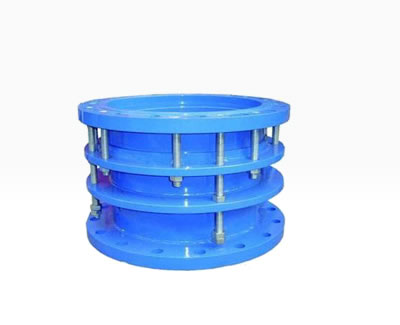

Introduction to Double Flange Limit Telescopic Device

Double flange limit expansion joint is also known as double flange loose sleeve limit expansion joint. The model of this product is VSSJA-2 or B2F, which is a new type of pipe compensation joint.

Double flange limit expansion device is suitable for connecting both sides with flanges. Its function is to allow free expansion within the expansion amount. Once the expansion amount is reached, it can play a limit role. During installation, adjust the connection length between both ends of the product and the flange, tighten the gland bolts diagonally and uniformly, and then adjust the limit nuts. This allows the pipeline to expand freely within the expansion amount, lock the expansion amount, and ensure the smooth operation of the pipeline.

Technical parameters of double flange limit retractor

Nominal diameter Outer diameter of pipe Overall dimensions Expansion and contraction amount Flange connection size
DW L L1 0.6Mpa 1.OMpa
D D1 n-d D D1 n-d
65 76 340 105 50 160 130 4-￠14 185 145 4-￠18
80 89 190 150 4-￠18 200 160 8-￠18
100 108 21O 170 220 180
114
125 133 240 200 8-￠18 250 210
140
150 159 265 255 285 240 8-￠23
168
200 219 320 280 340 295
250 273 375 335 12-￠18 395 350 12-￠23
300 325 350 130 65 440 395 12-￠23 445 400 16-￠22
350 377 490 445 505 460 16-￠26
400 426 540 495 16-￠23 565 515 20-￠26
450 480 595 550 615 565
500 530 645 600 20-￠23 670 620 20-￠30
600 630 755 705 20-￠27 780 725 24-￠30
700 720 860 810 24-￠27 895 840 24-￠33
800 820 590 220 130 975 920 24-￠30 1015 950 28-￠33
900 920 1075 1020 1115 1015 28-￠36
1000 1020 1175 1120 28-￠30 1230 1160 28-￠36
1200 1220 1405 1340 32-￠33 1455 1380 32-￠40
1400 1420 1630 1560 36-￠36 1675 1590 36-￠42
1600 1620 1830 1760 40-￠36 1915 1820 40-￠48
1800 1820 2045 1970 44-￠39 2115 2020 44-￠48
2000 2020 2265 2180 48-￠42 2325 2230 48-￠48
2200 2220 2475 2390 52-￠42 2550 2440 52-￠56
2400 2420 2685 2600 56-￠42 2760 2650 56-￠56
