Introduction to small pull rod lateral ripple compensator

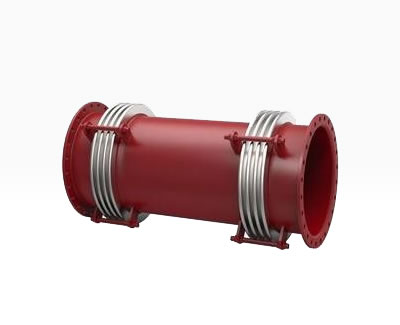

The small pull rod lateral corrugated compensator consists of two sections of corrugated pipe, intermediate connecting pipe, small pull rod with limited nuts, and other components. It absorbs lateral displacement in any plane of the pipe system, while absorbing axial displacement. The small pull rod cannot withstand internal pressure thrust.
Instructions for use of small pull rod lateral ripple compensator
1. If users do not use small pull rods when using them, please indicate when ordering.
2. If a user needs a small pull rod when using it, it is important to loosen the nut and keep it a distance from the ceiling ear plate (or support plate) after installation (the value is determined by the compensation amount in the direction).
3. If the actual compensation amount is greater than the specified value on the sample (service life ≤ 1000 times), the small pull rod needs to be removed after installation of the product.
Introduction to small pull rod lateral ripple compensator
|
Nominal diameter DN |
Pressure 0.6Mpa |
Pressure 1.0Mpa |
Pressure 1.6Mpa |
Effective area A cm2 |
Welded end pipe d × t mm | Cabinet minister L mm |
Weight kg F/H |
|||
|
Axial displacement/axial stiffness mm/ (N/mm) |
Lateral displacement/lateral stiffness mm/ (N/mm) |
Axial displacement/axial stiffness mm/ (N/mm) |
Lateral displacement/lateral stiffness mm/ (N/mm) |
Axial displacement/axial stiffness mm/ (N/mm) |
Lateral displacement/lateral stiffness mm/ (N/mm) | |||||
| 100 | 32/210 | 96/8.0 | 28/252 | 86/9.6 | 26/302 | 78/12 | 154 | 0.8 × 4 | 1000 | 30 |
| 200/2.0 | 180/2.5 | 162/3.1 | 1500 | 36 | ||||||
| 306/0.89 | 275/1.1 | 248/1.3 | 2000 | 41 | ||||||
| 411/0.50 | 370/0.6 | 333/0.75 | 2500 | 47 | ||||||
| 125 | 33/170 | 83/18 | 31/204 | 78/21.6 | 29/245 | 75/25.9 | 180 | 33 × 4 | 1000 | 39 |
| 115/6.8 | 109/8.2 | 103/9.8 | 1500 | 43 | ||||||
| 198/3.5 | 188/4.2 | 178/5.0 | 2000 | 51 | ||||||
| 269/1.8 | 255/2.2 | 242/2.6 | 2500 | 62 | ||||||
| 150 | 32/290 | 65/21 | 30/348 | 61/25.2 | 27/417 | 58/30.2 | 299 | 59 × 4.5 | 1000 | 42 |
| 136/5.4 | 129/6.5 | 122/7.8 | 1500 | 53 | ||||||
| 107/2.4 | 197/2.9 | 186/3.5 | 2000 | 63 | ||||||
| 279/1.4 | 265/1.68 | 251/2.1 | 2500 | 74 | ||||||
| 200 | 48/326 | 72/47 | 43/391 | 68/56.4 | 40/469 | 65/70.5 | 531 | 19 × 6 | 1000 | 72 |
| 160/11 | 152/13.2 | 144/16.5 | 1500 | 89 | ||||||
| 250/5.0 | 237/6.0 | 225/7.5 | 2000 | 106 | ||||||
| 341/2.8 | 324/3.4 | 291/4.1 | 2500 | 123 | ||||||
| 250 | 46/400 | 127/20 | 43/480 | 114/25 | 38/576 | 108/30 | 774 | 73 × 8 | 1500 | 121 |
| 199/9.0 | 179/10.8 | 170/13.5 | 2000 | 150 | ||||||
| 271/5.0 | 257/6.0 | 231/7.5 | 2500 | 178 | ||||||
| 343/3.2 | 325/3.8 | 293/4.6 | 3000 | 206 | ||||||
| 300 | 59/336 | 134/25 | 56/403 | 127/30 | 50/483 | 121/36 | 1069 | 25 × 8 | 1500 | 146 |
| 213/11 | 202/13.2 | 192/15.8 | 2000 | 179 | ||||||
| 292/6.0 | 277/7.2 | 263/8.6 | 2500 | 213 | ||||||
| 372/3.8 | 353/4.6 | 335/5.4 | 3000 | 246 | ||||||
| 350 | 58/366 | 107/40 | 55/402 | 102/44 | 52/442 | 96/48 | 1263 | 77 × 8 | 1500 | 171 |
| 178/16 | 169/18 | 161/22 | 2000 | 208 | ||||||
| 250/8.5 | 237/10 | 226/12 | 2500 | 245 | ||||||
| 322/5.3 | 306/6.9 | 290/9.6 | 3000 | 282 | ||||||
| 400 | 57/415 | 92/58 | 54/48 | 87/63 | 51/492 | 83/69 | 1612 | 26 × 8 | 1500 | 192 |
| 154/23 | 142/25 | 135/27 | 2000 | 235 | ||||||
| 215/12 | 204/13 | 196/15 | 2500 | 278 | ||||||
| 278/7.7 | 264/9 | 250/11 | 3000 | 321 | ||||||
| 450 | 55/415 | 81/80 | 52/456 | 77/88 | 49/484 | 73/96 | 1995 | 78 × 8 | 1500 | 218 |
| 135/32 | 128/35 | 122/38 | 2000 | 268 | ||||||
| 189/17 | 180/19 | 171/21 | 2500 | 319 | ||||||
| 243/11 | 230/12 | 218/13 | 3000 | 370 | ||||||
| 500 | 90/746 | 36/241 | 72/895 | 32/260 | 58/984 | 29/281 | 2625 | 29 × 10 | 1400 | 535 |
| 68/89 | 62/96 | 56/104 | 1700 | 581 | ||||||
| 102/42 | 92/45 | 83/49 | 2000 | 627 | ||||||
| 126/28 | 113/30 | 102/32 | 2200 | 658 | ||||||
| 166/18 | 149/19 | 134/21 | 2500 | 704 | ||||||
| 198/12 | 178/13 | 160/14 | 2800 | 750 | ||||||
| 600 | 94/820 | 42/208 | 85/886 | 38/224 | 75/948 | 34/242 | 3590 | 30 × 10 | 1500 | 648 |
| 71/102 | 64/110 | 58/118 | 1800 | 702 | ||||||
| 106/47 | 95/51 | 86/55 | 2200 | 775 | ||||||
| 135/30 | 121/32 | 111/35 | 2500 | 830 | ||||||
| 168/21 | 156/23 | 141/25 | 2800 | 884 | ||||||
| 199/14 | 183/15 | 168/17 | 3200 | 957 | ||||||
